中华腔镜泌尿外科杂志(电子版) ›› 2025, Vol. 19 ›› Issue (03) : 346 -352. doi: 10.3877/cma.j.issn.1674-3253.2025.03.011

临床研究

基于决策树模型评价两种碎石方式的成本-效果
施冬亮1, 王滢鹏2, 万彬1,2, 丁海霞1,2,()
  1. 1. 211166 江苏,南京医科大学药学院
    2. 210029 南京,江苏省人民医院医疗保险处
  • 收稿日期:2024-01-02 出版日期:2025-06-01
  • 通信作者: 丁海霞

Cost-effectiveness of two lithotripsy methods based on decision tree model

Dongliang Shi1, Yingpeng Wang2, Bin Wan1,2, Haixia Ding1,2,()

  1. 1. School of pharmacy, Nanjing Medical University, Nanjing 211166,China
    2. Department of Medical Insurance, Jiangsu Province Hospital, Nanjing 210029, China
  • Received:2024-01-02 Published:2025-06-01
  • Corresponding author: Haixia Ding
引用本文:

施冬亮, 王滢鹏, 万彬, 丁海霞. 基于决策树模型评价两种碎石方式的成本-效果[J/OL]. 中华腔镜泌尿外科杂志(电子版), 2025, 19(03): 346-352.

Dongliang Shi, Yingpeng Wang, Bin Wan, Haixia Ding. Cost-effectiveness of two lithotripsy methods based on decision tree model[J/OL]. Chinese Journal of Endourology(Electronic Edition), 2025, 19(03): 346-352.

目的

比较输尿管软镜碎石术(FURL)与微通道经皮肾镜碎石取石术(mPCNL)治疗单侧直径<2.0 cm 肾和输尿管上段结石的成本-效果。

方法

收集2022 年3 月至11 月江苏省人民医院收治的115 例单侧直径<2.0 cm 肾和输尿管上段结石患者的数据,采用Treeage Pro 软件构建结石术后1 个月的决策树分析模型,评估两种碎石手术方式的临床疗效、安全性和经济性。并通过单因素敏感性分析、概率敏感性分析对本研究结果的稳健性进行验证。

结果

FURL 组的首次碎石成功率显著高于mPCNL 组,差异有统计学意义(P<0.05),两组患者在术后并发症发生情况方面差异无统计学意义(P>0.05)。基础分析结果显示,FURL 组成本和健康效用分别为29 080.9 元和0.90 质量调整生命年(QALYs),mPCNL 组的成本和健康效用分别为26 787.6 元和0.87 QALYs,FURL 相较于mPCNL 的增量成本-效果比(ICER)为76 443.3 元/QALYs,低于意愿支付值阈(WTP)257 100 元/QALYs,因此FURL 组为优势方案。当患者的支付意愿价格高于60 000 元时,FURL 组具有经济性的概率高于mPCNL 组,敏感性分析结果验证了基础分析结果的稳健性。

结论

FURL 治疗肾和输尿管上段结石能有效缩短手术时间,增加结石清除率,在术后并发症方面与mPCNL 无差异,且成本-效果优势显著,具有良好的临床价值和卫生经济学优势。

Objective

To compare the cost-effectiveness of flexible ureteroscopic lithotripsy(FURL) versus mini-percutaneous nephroscopic lithotripsy (mPCNL) for treating unilateral renal and upper ureteral stones with diameter <2.0 cm.

Methods

The data of 115 patients with unilateral kidney diameter <2.0 cm and upper ureteral calculi admitted in Jiangsu Province Hospital from March to November 2022 were collected, and the decision tree analysis model analyzing outcomes one month after surgery was constructed using Treeage Pro software to evaluate the clinical efficacy,safety and economy of the two lithotripsy procedures.The robustness of the results of this study was verified by one-way sensitivity analysis and probabilistic sensitivity analysis.

Results

The success rate of first lithotripsy in FURL group was significantly higher than that in mPCNL group,with a significant difference (P<0.05), and no significant difference in the occurrence of postoperative complications in the two groups (P>0.05).The basic analysis showed that the FURL cost and health utility were 29 080.9 and 0.90 quality adjusted life years (QALYs), respectively, the cost and health utility of mPCNL group were 26 787.6 and 0.87 QALYs, respectively, the incremental costeffectiveness ratio (ICER) of mPCNL was 76 443.3/QALYs, which was lower than willingness to pay(WTP), so FURL group was the dominant scheme.When the patient's willingness to pay is higher than 60 000 yuan, the FURL group has a higher probability of economy than the mPCNL group, and the sensitivity analysis results verify the robustness of the basic analysis results.

Conclusion

FURL treatment of renal and upper ureteral stones can effectively shorten the operation time and increase the stone clearance rate, which has no significant difference from mPCNL in terms of complications, and has significant cost-effect advantages, with good clinical value and health economic advantages.

表1 两种碎石方式的决策树模型参数基础值及敏感性分析范围

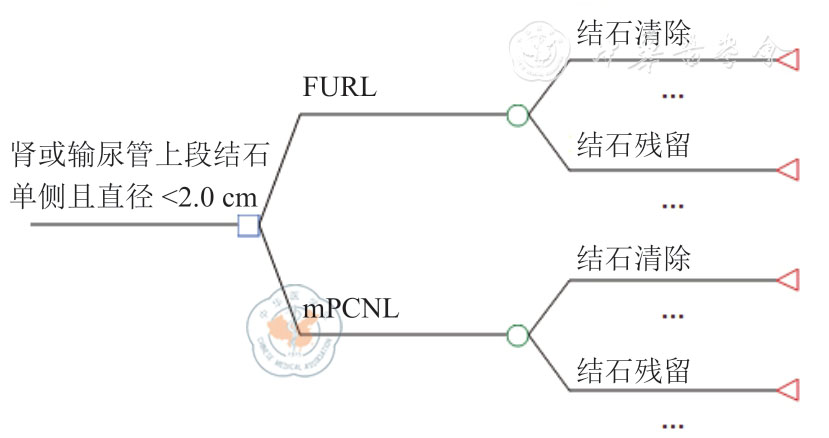

图1 两种碎石方式的成本-效果决策树模型结构图
表2 两组结石患者术前一般资料比较
表3 两组结石患者手术情况比较
表4 两组结石患者术后并发症发生情况比较(例)
表5 成本-效果分析结果

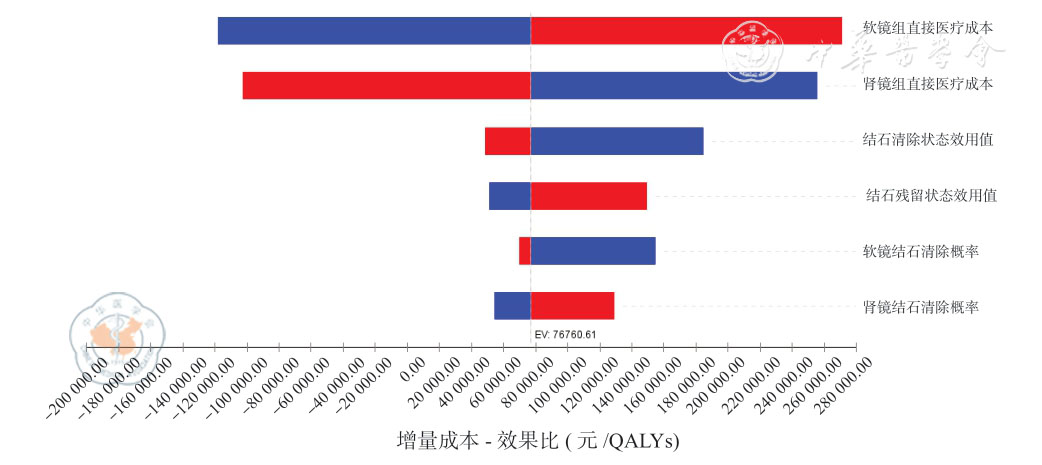

图2 单因素敏感性分析龙卷风图
图3 概率敏感性分析成本-效果可接受曲线
图4 蒙特卡洛模拟增量成本-效果散点图
[1]
Tabei T, Ito H, Kobayashi K, et al.Comparison of outcomes between two methods to extract stone fragments during flexible ureteroscopic lithotripsy[J].Biomed Res Int, 2018, 2018: 4526721.DOI:10.1155/2018/4526721.
[2]
苏奕博.超微经皮肾镜碎石取石术对输尿管上段结石及肾结石患者肾功能及疼痛程度的影响[J].中外医学研究, 2022, 20(8): 147-150.DOI: 10.14033/j.cnki.cfmr.2022.08.041.Su YB.Effects of ultra-micro percutaneous nephrolithotomy on renal function and pain degree of patients with upper ureteral Calculus and renal Calculus[J].Chin Foreign Med Res, 2022, 20(8): 147-150.DOI: 10.14033/j.cnki.cfmr.2022.08.041.
[3]
平秦榕, 王应东, 柯昌兴, 等.组合式输尿管软镜联合钬激光治疗肾结石: 158 例报告[J].中国微创外科杂志, 2018, 18(6): 531-534.DOI: 10.3969/j.issn.1009-6604.2018.06.015.Ping QR, Wang YD, Ke CX, et al.Clinical experience of modular flexible ureteroscopy combined with holmium laser lithotripsy for renal calculi: report of 158 cases[J].Chin J Minim Invasive Surg,2018, 18(6): 531-534.DOI: 10.3969/j.issn.1009-6604.2018.06.015.
[4]
周均洪, 唐炎权, 廖芝健, 等.一期经输尿管硬通道下软硬镜与软通道下软镜钬激光碎石治疗直径2~4 cm 肾盂结石的比较[J].中国微创外科杂志, 2016, 16(2): 161-164.DOI: 10.3969/j.issn.1009-6604.2016.02.018.Zhou JH, Tang YQ, Liao ZJ, et al.One-stage rigid combined flexible ureteroscopy via rigid ureteral access sheath versus flexible ureteroscopy via soft ureteral access sheath for 2-4 cm pelvic calculi[J].Chin J Minim Invasive Surg, 2016, 16(2): 161-164.DOI:10.3969/j.issn.1009-6604.2016.02.018.
[5]
Türk C, Petřík A, Sarica K, et al.EAU guidelines on interventional treatment for urolithiasis[J].Eur Urol, 2016, 69(3): 475-482.DOI:10.1016/j.eururo.2015.07.041.
[6]
张李晓, 张栩亮.不同手术方式治疗移植肾输尿管上段结石的疗效及安全性分析[J].现代泌尿外科杂志, 2022, 27(5): 412-415.DOI: 10.3969/j.issn.1009-8291.2022.05.010.Zhang LX, Zhang XL.Efficacy and safety of different surgical procedures for upper ureteral calculi after renal transplantation[J].J Mod Urol, 2022, 27(5): 412-415.DOI: 10.3969/j.issn.1009-8291.2022.05.010.
[7]
Marchini GS, Torricelli FC, Batagello CA, et al.A comprehensive literature-based equation to compare cost-effectiveness of a flexible ureteroscopy program with single-use versus reusable devices[J].Int Braz J Urol, 2019, 45(4): 658-670.DOI: 10.1590/S1677-5538.IBJU.2018.0880.
[8]
周葵.输尿管软镜联合钬激光治疗肾结石的临床效果分析[J].深圳中西医结合杂志, 2023, 33(13): 73-75.DOI: 10.16458/j.cnki.1007-0893.2023.13.023.Zhou K.Clinical effect analysis of ureteroscopy combined with holmium laser in the treatment of kidney stones[J].Shenzhen J Integr Tradit Chin West Med, 2023, 33(13): 73-75.DOI: 10.16458/j.cnki.1007-0893.2023.13.023.
[9]
Hu X, Jiang K, Chen H, et al.Simultaneous treatment of renal and upper ureteral stone and cysts with percutaneous nephrolithotomy and cyst laser intrarenal incision and drainage[J].Urol J, 2017, 15(1):6-10.DOI: 10.22037/uj.v0i0.3775.
[10]
倪颖,张铁龙,王岗,等.未预置支架逆行输尿管镜治疗近端输尿管结石手术中的困难与应对[J/OL].中华临床医师杂志(电子版), 2024, 18(9): 795-801.DOI: 10.3877/cma.j.issn.1674-0785.2024.09.001.Ni Y, Zhang TL, Wang G, et al.Difficulties and countermeasures in retrograde ureteroscopy for proximal ureteral calculi without prestenting[J/OL].Chin J Clin(Electronic Edition), 2024, 18(9): 795-801.DOI: 10.3877/cma.j.issn.1674-0785.2024.09.001.
[11]
薛向东, 余沁楠, 张会清, 等.FURS 与PCNL 治疗肾结石疗效比较[J].分子诊断与治疗杂志, 2023, 15(1): 132-135, 140.DOI:10.3969/j.issn.1674-6929.2023.01.033.Xue XD, Yu QN, Zhang HQ, et al.Furs versus PCNL in the treatment of kidney stones[J].J Mol Diagn Ther, 2023, 15(1): 132-135, 140.DOI: 10.3969/j.issn.1674-6929.2023.01.033.
[12]
王李婷, 彭六保, 彭烨, 等.2020 年版和2011 年版中国药物经济学评价指南比较分析[J].中国药物经济学, 2021, 16(3): 5-8, 15.DOI: 10.12010/j.issn.1673-5846.2021.03.001.Wang LT, Peng LB, Peng Y, et al.Comparative analysis between 2020 version and 2011 version on China guidelines for pharmacoeconomic evaluation[J].China J Pharm Econ, 2021, 16(3): 5-8, 15.DOI:10.12010/j.issn.1673-5846.2021.03.001.
[13]
Alkhatib NS, Ramos K, Erstad B, et al.Pricing methods in outcomebased contracting: δ2: willingness-to-pay-based pricing[J].J Med Econ, 2020, 23(11): 1223-1229.DOI: 10.1080/13696998.2020.1815026.
[14]
Zhao M, Pan X, Yin Y, et al.Cost-effectiveness analysis of five systemic treatments for unresectable hepatocellular carcinoma in China: an economic evaluation based on network metaanalysis[J].Front Public Health, 2022, 10: 869960.DOI: 10.3389/fpubh.2022.869960.
[15]
郭树刚, 曾伟.经皮肾镜碎石术与经尿道输尿管软镜碎石术治疗直径2~4 cm 肾结石的疗效与安全性比较[J].医学理论与实践, 2021, 34(15): 2642-2643.DOI: 10.19381/j.issn.1001-7585.2021.15.040.Guo SG, Zeng W.Comparison of the efficacy and safety of percutaneous nephrolithotomy and transurethral ureteroscopic lithotripsy for the treatment of kidney stones with a diameter of 2-4 cm[J].J Med Theory Pract, 2021, 34(15): 2642-2643.DOI:10.19381/j.issn.1001-7585.2021.15.040.
[16]
顾志文, 郑彬, 罗发彩, 等.输尿管硬镜与软镜治疗10~20 mm输尿管上段结石的比较[J].中国微创外科杂志, 2018, 18(9): 814-818.DOI: 10.3969/j.issn.1009-6604.2018.09.012.Gu ZW, Zheng B, Luo FC, et al.Comparison of rigid and flexible ureteroscopy for the treatment of upper ureteral stones sized 10-20 mm[J].Chin J Minim Invasive Surg, 2018, 18(9): 814-818.DOI:10.3969/j.issn.1009-6604.2018.09.012.
[17]
谢彦芳, 汤雨久, 李云.微通道经皮肾镜与输尿管软镜碎石术治疗肾结石患者的疗效[J].医疗装备, 2021, 34(10): 103-104.DOI:10.3969/j.issn.1002-2376.2021.10.056.Xie YF, Tang YJ, Li Y.The therapeutic effect of microchannel percutaneous nephrolithotomy and ureteroscopic lithotripsy on patients with kidney stones [J].Med Equip, 2021, 34(10): 103-104.DOI: 10.3969/j.issn.1002-2376.2021.10.056.
[18]
黄翔, 施国宏.输尿管软镜治疗肾结石的效果及安全性分析[J].中国医药指南, 2022, 20(27): 78-80.DOI: 10.15912/j.cnki.gocm.2022.27.032.Huang X, Shi GH.Efficacy and safety of flexible ureteroscope in the treatment of renal calculi[J].Guide China Med, 2022, 20(27): 78-80.DOI: 10.15912/j.cnki.gocm.2022.27.032.
[19]
孔令军, 赵真, 黄子丽.输尿管软镜钬激光碎石术治疗单侧输尿管上段结石的临床效果[J].实用临床医学, 2022, 23(3): 28-31.DOI: 10.13764/j.cnki.lcsy.2022.03.009.Kong LJ, Zhao Z, Huang ZL.Effect of flexible ureteroscopic holmium laser lithotripsy on unilateral upper ureteral calculi[J].Pract Clin Med, 2022, 23(3): 28-31.DOI: 10.13764/j.cnki.lcsy.2022.03.009.
[20]
国家医疗保障局.国家医疗保障局关于印发DRG/DIP 支付方式改革三年行动计划的通知[EB/OL].https://www.nhsa.gov.cn/art/2021/11/26/art_37_7406.html National Healthcare Security Administration.Notice from the National Healthcare Security Administration on issuing the three year action plan for DRG/DIP payment method reform[EB/OL].https://www.nhsa.gov.cn/art/2021/11/26/art_37_7406.html
[21]
保山市人民政府.保山市人民政府办公室关于印发保山市DRG支付方式改革三年行动计划实施方案的通知[EB/OL].https://www.baoshan.gov.cn/info/3989/3065734.html Baoshan Municipal People's Government.Notice from the office of the People's Government of Baoshan City on issuing the implementation plan for the three Year action plan of Baoshan DRG payment method reform[EB/OL].https://www.baoshan.gov.cn/info/3989/3065734.html
[22]
DRG/DIP 新三年行动方案出炉[J].中国医疗保险, 2022(1): 10-11.DRG/DIP new three year action plan released [J].China Health Insur,2022(1): 10-11.
[23]
张曦才,曹先德.经皮肾镜取石术治疗无积水肾结石中皮肾通道建立的应用研究进展[J/OL].中华临床医师杂志(电子版), 2023,17(8): 911-915.DOI: 10.3877/cma.j.issn.1674-0785.2023.08.012.Zhang XC, Cao XD.Research progress on the application of percutaneous nephrolithotomy in establishing percutaneous renal access for non-hydronephrotic renal calculi[J].Chin J Clin(Electronic Edition), 2023, 17(8): 911-915.DOI: 10.3877/cma.j.issn.1674-0785.2023.08.012.
[24]
李遄, 皮江川, 熊永江, 等.3 种腔镜手术治疗老年患者输尿管上段嵌顿性结石的疗效及安全性比较[J].局解手术学杂志, 2021,30(10): 863-868.DOI: 10.11659/jjssx.05E021069.Li C, Pi JC, Xiong YJ, et al.Comparison of curative effect and safety of three endoscopic surgeries for the treatment of incarcerated upper ureteral calculi in elderly patients[J].J Reg Anat Oper Surg, 2021,30(10): 863-868.DOI: 10.11659/jjssx.05E021069.
[25]
王博文, 边黎明, 汪卓赟.价值医疗理念下公立医院绩效考核的探索与思考[J].中国医院管理, 2023, 43(3): 63-66.Wang BW, Bian LM, Wang ZY.Exploration and thoughts on performance appraisal of public hospitals under the philosophy of value-based healthcare[J].Chin Hosp Manag, 2023, 43(3): 63-66.
[26]
高鹏,刘言.价值医疗的概念及相关研究进展[J].中国医疗管理学,2022,12(01):57-62.DOI:10.3969/j.issn.2095-7432.2022.01.012 Gao P, Liu Y.Value-based medicine: concept and recent advances[J].Chin J Med Manage Sci, 2022, 12(1): 57-62.DOI: 10.3969/j.issn.2095-7432.2022.01.012
[27]
蒋伊石, 王思晨, 邵晓军.卵巢恶性肿瘤DRG 分组优化和医保偿付案例研究[J].中国卫生经济, 2020, 39(8): 35-38.DOI: 10.7664/CHE20200808.Jiang YS, Wang SC, Shao XJ.Case study on optimization and reimbursement of diagnosis related groups for surgical groups in malignant neoplasm of ovary[J].Chin Health Econ, 2020, 39(8): 35-38.DOI: 10.7664/CHE20200808.
